Total Knee

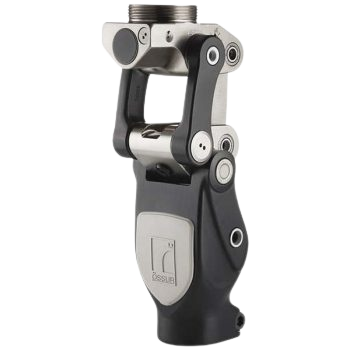

Total Knee® 1900

Total Knee 1900 is a polycentric knee joint using an elastic polymer for friction. Designed to accomplish everyday walking activities for all users.

Product Description

Total Knee 1900 accomplishes everyday walking actitivty for all users. An elastic polymer creates friction to control the swing phase and keep it steady. An extension promoter is used to limit heel rise and move the knee into a full extended position

Key Features

  • Polycentric knee with geometric locking system
  • Swing phase control using friction in an elastic polymer medium
  • Adjustable extension promoter
  • Adjustable extension promoter
  • Low build height, useful for long trans-femoral limbs or knee disarticulation
  • 30mm (13/16″) pylon adaptability
  • High knee flexion angle up to 150°

General Information

Level of limb difference: Knee disarticulation, Hip disarticulation and Transfemoral

Impact Level: Moderate, High and Extreme

Max patient weight: 125 kg (275 lbs)

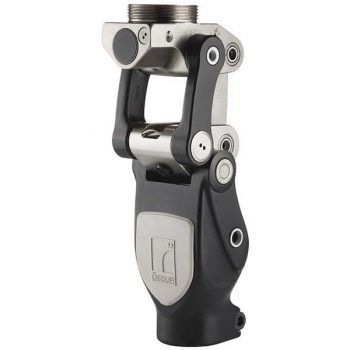

Total Knee® 2000

Total Knee 2000 is polycentric knee joint offering comfort, natural gait, and shock absorption through adjustable stance flexion.

Product Description

Total Knee 2000 offers shock absorption, comfort and a natural gait. Toe clearance is provided through mid-swing shortening, preventing hip-hiking. The 3-phase hydraulic swing control accommodates changes in walking speed. Stance flexion can be adjusted, mimicking knee flexion during early stance, reducing shock and stress on the residual limb

Key Features

  • Polycentric knee with geometric locking system
  • Designed for multi-speed ambulation, higher impact levels and heavier loads
  • Adjustable stance flexion
  • Adjustable extension promoter
  • Low build height, useful for long trans-femoral limbs or knee disarticulation
  • 30mm (13/16″) pylon adaptability
  • High knee flexion angle up to 150°

General Information

Level of limb difference: Knee disarticulation, Hip disarticulation and Transfemoral

Impact Level: Moderate, High and Extreme

Max patient weight: 125 kg (275 lbs)

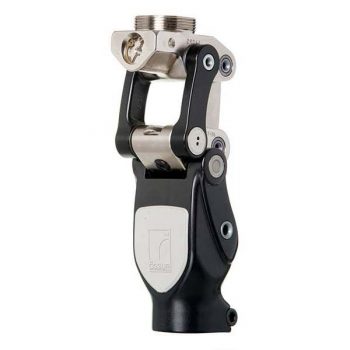

Total Knee® 2100

Total Knee 2100 is a polycentric, hydraulic knee joint providing active users with higher stability, control, and durability.

Product Description

Total Knee 2100 is a polycentric knee with 3-phase hydraulic swing control designed for the requirements of more active amputees

Offering 25% increased fluid capacity over Model 2000, Total Knee 2100 provides higher stability, control, efficiency and durability

Key Features

  • Polycentric knee with geometric locking system
  • Designed for multi-speed ambulation, higher impact levels and heavier loads
  • Adjustable stance flexion
  • Adjustable extension promoter
  • Low build height, useful for long trans-femoral limbs or knee disarticulation
  • 30mm (13/16″) pylon adaptability
  • High knee flexion angle up to 150°

General Information

Level of limb difference: Knee disarticulation, Hip disarticulation and Transfemoral

Impact Level: Moderate, High and Extreme

Max patient weight: 125 kg (275 lbs)
